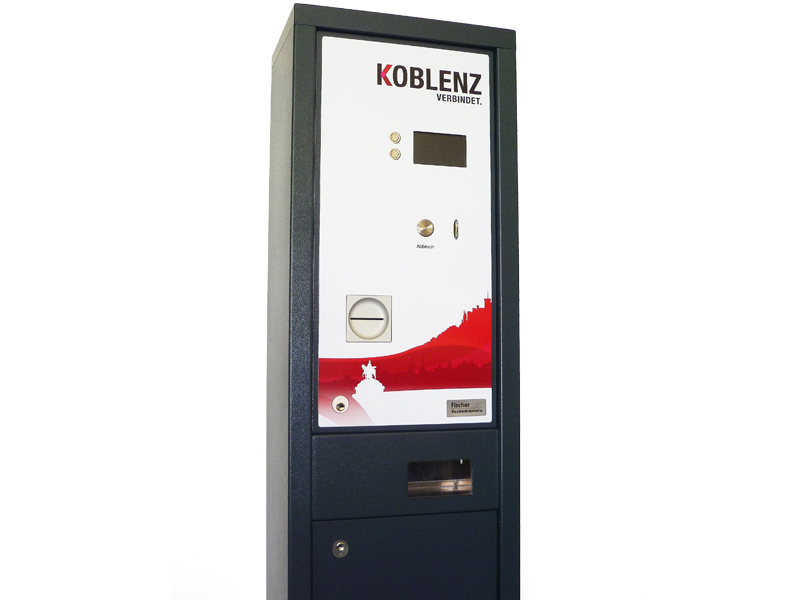

HTA - Universal Payment Machine

The space-saving solution with maximum convenience

The Fischer HTA has been developed especially for ticket sales and access control in smaller facilities. Operated as a stand-alone device, the HTA is mainly used for issuing tickets. As standard, it is equipped for the sale of up to four different tariffs. When connected to the entrance turnstile, it gives passage after payment. Service cards or season tickets are read and redeemed conveniently via the integrated card reader.

Technical data:

  • Housing made of a steel panel, electro-galvanised and power coated in RAL colour 7016 anthracite grey
  • Front panel made of satin stainless steel
  • Customised front panel (customized front foil)
  • Safety lock with 5-point locking system and opening monitoring
  • Self-sealing and monitored security strongbox with a capacity of approximately 5000 coins
  • Self-sealing coin slot (opens when triggered by a coin)
  • Internal power supply
  • Main controller that controls all device functions
  • 4.3“ TFT colour display
  • 2-4 operator buttons (vandal proof) for article selection
  • Setup preferably in enclosed and dry places
  • Dimensions: 159 cm x 42 cm x 26 cm (height x width x depth)

For more information about the equipment, please contact us.
